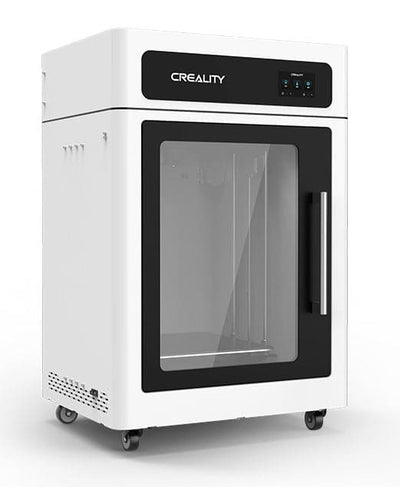

Creality CR-3040 Pro 3D Printer
3D printing in industrial format from Creality.
The new Creality CR-3040 Pro is the successor to the successful predecessor CR-3040. The CR-3040 Pro features a large print size of 300 x 300 x 400mm and a new optimized nozzle set for improved print precision.
High precision mechanical structure
In addition to the white and delicate appearance, the fully enclosed structure and high load-bearing capacity ensure a constant temperature environment to print with high stability and precision. With the dual-door design, you can observe the printing process in all directions.
Industrial print size
Built-in high-volume engine meets your endless creativity. Print size: 300x300x400mm
Dual XY axes and dual Z axis screws
Double cross shaft with precise screw and positioning transmission ensures high printing speeds and printing stability .
Brand new printing platform
The print bed temperature is up to 110℃ with even heating and high adhesion. The upgrade carborundum glass platform is designed so that you can remove the printed components without warping.
New nozzle kit
Equipped with the new generation of heat sink, the nozzle can cool down in time without clogging. The optimized high-performance heater can also heat up particularly quickly . The upgraded platinum resistance thermistor has more sensitive temperature transmission and longer service life .
air purification system
Equipped with dual 6.25 fans, it effectively reduces air dust and avoids excessive case temperature, which ensures the printing effect.
LED light/real-time pressure observation
Built-in soft light LED light makes it easier for you to observe the printing process and avoid printing errors .
Construction and technical details | |
Usable nozzle type | MK8 |
Usable filament diameter | 1.75mm |
Nozzle temperature max | 280ºC |
Open filament system | Yes |
extruder type | Bowden |
print speed max | 180 mm/s (depends on material)) |
installation space | 300mm x 300mm x 400mm |
Build platform temp max | 110ºC |
Build platform material | Carborundum glass plate |
Build platform mount | bracket |
Build platform leveling system | BL touch |
space during the printing process | Open or Closed |
Filament chamber closed | Yes |
number of extruders | 1 |
Installation Space / Requirements |
|
dimensions total | 540mm x 471mm x 885mm |
total weight | 58kg |
Max. energy demand | 500W |
Tension | AC: 100V - 240V (50/60Hz) |
DC: 24V | |
Furnishing | |
Hepa filters | Yes |
Filament Runout Sensor | Yes |
power failure backup | Yes |
touch screen | Yes |
Connection | |
SD card | Yes, SD card |
USB port | Yes |
WIRELESS INTERNET ACCESS | No |
accuracy | |
layer height | 0.1 - 0.3mm |
Shipment | |
Packaging | 700mm x 640mm x 1115mm |
shipping weight | 110kg |
